The Potter’s House Church In Texas Upgrades With Solid State Logic Consoles

by | Audio, Case Studies, Production

The audio system serving the sanctuary at The Potter’s House church in Dallas, founded by televangelist Bishop T.D. Jakes, recently underwent an upgrade. The installation of three Dante-networked Solid State Logic Live L550 digital mixing consoles were positioned at front of house, monitors and the church’s broadcast center.

Why The Need To Upgrade

“As our ministry has grown over the years and we’ve started to do a lot of stuff that’s outside of the norm, we started to run into walls because we just couldn’t do it with our previous consoles,” says Production Manager and Front of House Engineer William B. Barnett. “We have 160 or 170 inputs at times, and we were starting to run into input challenges. So as we’ve grown, and our technical prowess has grown, we decided we wanted a console that could do a little more, that sounds amazing and has more inputs.”

The three SSL Live L550 desks offer an improvement both in operational capabilities and in the system’s sound quality, he adds. “If you have to have a bunch of plug-ins to make your console sound decent then that’s an issue. So we said, let’s look at a console that sounds incredible, operates at 96 kHz, has mic preamps with great gain, and is a fairly easy platform to use but has expansive programming.”

Header image
The Solution

The 191,000-square-foot main sanctuary at the church’s Dallas campus, built and opened in 2000, can accommodate as many as 8,000 worshippers. It’s equipped with a Sound Bridge Acoustic Labs Xyon line array system powered by Lab.gruppen and Powersoft amplification with Dolby LM26 processing. To cover the large expanse of tiered seating, the PA is configured with left and right out fills, front fills, under-balcony and upper balcony delay speakers in addition to the main left and right hangs. There are also feeds to the building’s public areas, such as hallways and restrooms, plus a translation feed. With the previous FOH console, says Barnett, “We were doing a combination of matrix outputs from the console and having to group some stuff because there weren’t enough outputs. But with the SSL, everything is driven off of the Live console’s matrix because we have so many outputs.”

Research Is Important

The audio production team did their due diligence before purchasing the three L550 consoles. They consulted with SSL’s George Horton, Vice President, Western Region, and Live Product Specialist Fernando Guzman. The process included arranging several demonstrations of the desk over the course of many months. “We were able to install the SSL in the main sanctuary and A/B it with our previous console. Out of the box, with no EQ, no insert, no anything, just running a CD through it, the difference was night and day! And when we put an SM58 microphone through it and voiced it, the transparency of the mic preamps was absolutely incredible,” says Barnett.

Additional System Equipment

As for monitors, the church is utilizing the SSL Live TaCo (Tablet Control) mix app. This app provides wireless tablet control of SSL Live consoles from iPad and Android devices. “Each musician has a tablet and mixes themselves with TaCo,” says Barnett. “We’re doing multiple channels of ears and multiple channels of monitors.”

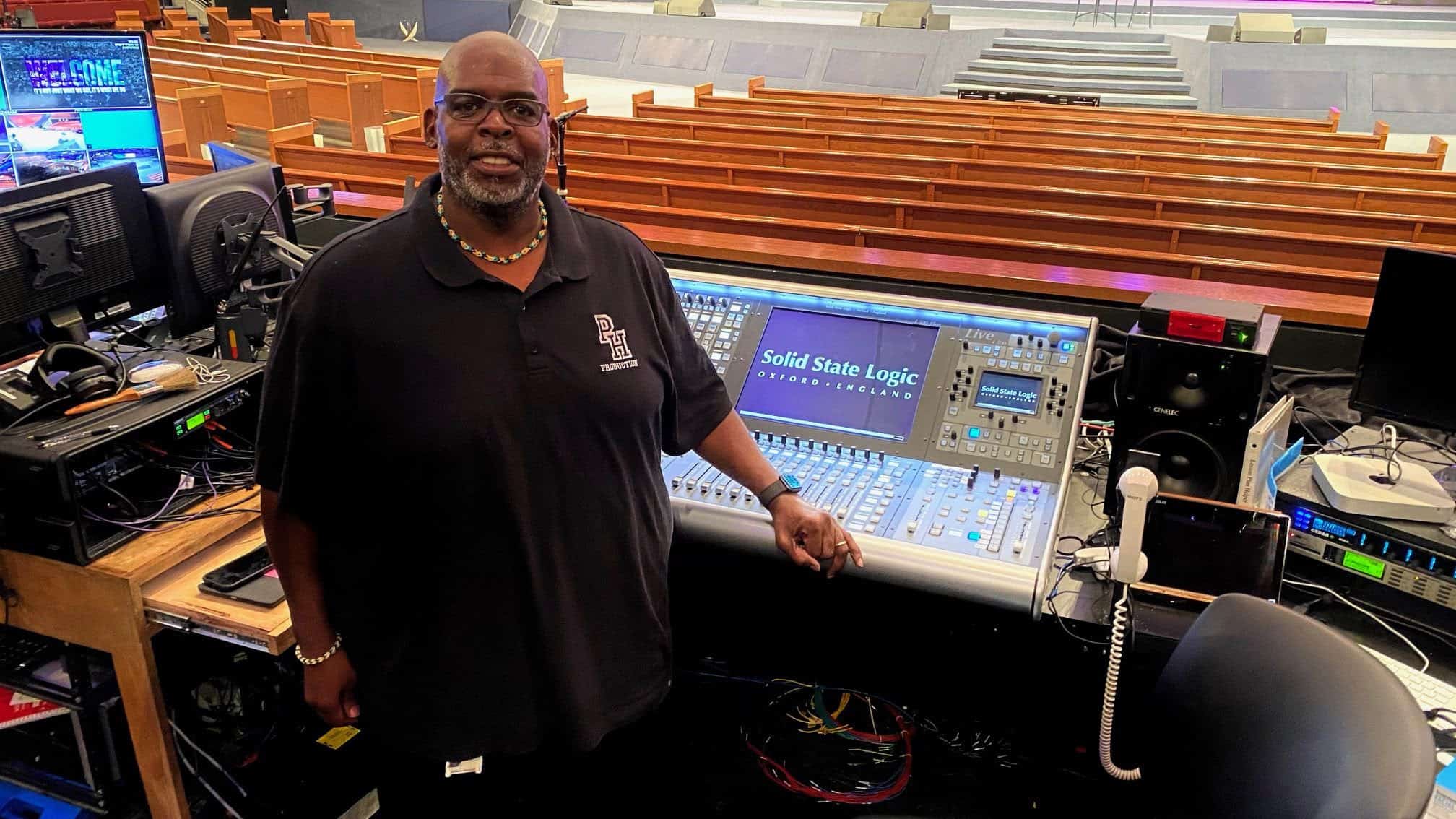

Audio Supervisor and Broadcast Engineer Gerard Hairston operates the L550 console installed in the church’s sophisticated TV broadcast center. Hairston, who has worked at The Potter’s House for many years, was a member of the audio team that won a Grammy Award in 2003 in the Best Gospel Choir or Chorus Album category for “A Wing and a Prayer” by Bishop T.D. Jakes & The Potter’s House Mass Choir. “We currently just broadcast to the web, although we have streamed to other locations,” Hairston says. “We’ve done a bunch of different configurations; there’s not too much that we haven’t tried. We still do a lot of different stuff, so even though the SSL console has a lot of ins and outs, we’ve almost got it maxed out. But this console will pretty much do anything we want to do.”

Hairston has long overseen the facility-wide audio signal distribution. While the Dante network offers greater flexibility than the previous tieline system, the production team was skeptical at first, he notes. “But it’s been rock solid. And now our video side is also switching over to Dante, so we decided to free up some streams and use MADI to go to the recorder.” The Waves Tracks Live multitrack recorder can be operated from any of the three mix locations.

Future Plans

The team is planning to add a couple of SSL Net I/O MADI Bridge units to integrate with the video department’s Dante channels and to connect to two other venues at the church’s Dallas campus. “One of our main reasons for going Dante was so we could easily tie into our other venues,” reports Barnett. “One is a 2,500-seat venue that we also do events in. We sometimes need to send or receive audio, or they need to record, or we need it for overflow. We also have a small room that holds 400 people; we’re probably going to put that SSL box in that room, too.

“If you can think of something that you’d like to do, you can pretty much set the SSL console up to do it,” he concludes. “I have yet to find a situation that this console is not able to handle.”

Solid State Logic
